Shantiaee Y, Zandi B, Shojaeian S, Mortezapour N, Soltaninejad F. Micro-computed tomography assessment of dentinal microcracks after the preparation of curved root canals with rotary and reciprocal systems. Dent Med Probl. 2021;58(4):515–523. doi:10.17219/dmp/134149

Micro-computed tomography assessment of dentinal microcracks after the preparation of curved root canals with rotary and reciprocal systems

Yazdan Shantiaee1,A,E,F, Babak Zandi1,A, Shiva Shojaeian1,B, Niloofar Mortezapour1,B, Fatemeh Soltaninejad1,A,B,C,D

1 Department of Endodontics, School of Dentistry, Shahid Beheshti University of Medical Sciences, Tehran, Iran

Abstract

Background. Root canal preparation with nickel-titanium (NiTi) instruments may lead to the formation of microcracks in the root canal wall. Vertical root fractures may initiate from dentinal cracks, and eventually necessitate tooth extraction.

Objectives. This study aimed to assess the effect of the instrumentation of curved root canals of mandibular molars with the 2Shape (2S) sequential rotary, EdgeFile® X1 (EFX1) reciprocating and NeoNiTi (NN) rotational single-file systems on the formation of dentinal microcracks with the use of micro-computed tomography (micro-CT).

Material and methods. Thirty curved mandibular molar root canals were instrumented with the 2S, EFX1 and NN systems (10 in each group). The teeth underwent micro-CT before and after instrumentation. Next, the pre-instrumentation and post-instrumentation cross-sectional images were evaluated and compared for the detection of dentinal microcracks. The number of microcracks in each group was calculated and reported as percentage. The data was analyzed using the McNemar’s test with the IBM SPSS Statistics for Windows software, v. 25.0 (α = 0.05).

Results. Out of the 29,280 cross-sectional images evaluated in this study, 11.5% showed dentinal micro­cracks (n = 3,362). On the post-instrumentation images, the frequency percentage of microcracks was 12.0% (n = 585) in the 2S group, 8.8% (n = 402) in the EFX1 group and 13.3% (n = 694) in the NN group. All of the microcracks detected on the post-instrumentation images were also present on the pre-instrumentation images and no new microcracks were formed after root canal instrumentation with the aforementioned systems.

Conclusions. Root canal instrumentation with the 2S, EFX1 and NN systems did not result in the formation of new dentinal microcracks.

Keywords: root canal preparation, microcracks, dentinal defect, micro-computed tomography, curved root canal

Introduction

The main goal of the chemomechanical preparation of the root canal system is to eliminate micro­organisms, pulpal tissue and debris, and to shape the root canal in order to create adequate space for the root filling material.1 Nickel-titanium (NiTi) rotary systems with improved properties are produced by several manufacturers to achieve these goals. NiTi systems have numerous advantages over stainless-steel hand files, such as a higher flexibility and a shorter working time. However, root canal preparation with these instruments may lead to the formation of microcracks in the root canal wall.2, 3 Microcracks may occur as a result of the distribution of lateral forces in root canal walls and root surface strain. They appear more frequently when high-taper instruments are used or in teeth with curved roots, as the part of the canal with the maximum curvature accumulates the maximum stress.4 The importance of this topic consists in the fact that vertical root fractures may initiate from dentinal cracks, and eventually necessitate tooth extraction.5

2Shape (2S; Micro-Mega, Besançon, France) instruments with sequential rotary systems are manufactured by means of specific heat treatment (T-Wire), which is believed to provide higher flexibility and cyclic fatigue resistance, and preserve the elasticity of NiTi files.6

EdgeFile® X1 (EFX1; EdgeEndo, Albuquerque, USA) is a reciprocating system manufactured from the annealed heat-treated NiTi alloy, commercially known as Fire-Wire. Its manufacturer claims that it has a high torque strength, optimal flexibility and an increased cyclic fatigue resistance.7

NeoNiTi (NN; Neolix, Châtres-la-Forêt, France) is a single-file system with a full-rotational motion that benefits from the electric discharge machining (EDM) techno­logy. Its manufacturer claims that it has optimal flexibility, a high fracture resistance, and a favorable shaping ability due to its unique properties, rectangular cross-section, efficient cutting blades, and built-in abrasive surface.8

Micro-computed tomography (micro-CT) is an imaging modality suggested for the assessment of dentin and its changes without damaging the tooth structure. Due to its high accuracy, it is commonly used for the assessment of dentinal microcrack formation following root canal instrumentation.2, 3, 9, 10

This study aimed to assess the formation of new dentinal microcracks following the instrumentation of curved root canals of mandibular molars with the 2S, EFX1 and NN systems by using micro-CT.

Material and methods

The study protocol was approved by the Research Ethics Committee of Shahid Beheshti University of Medical Sciences, Tehran, Iran (IR.SBMU.DRC.REC.1399.036).

Sample size calculation

The sample size was calculated to be 10 in each group (to assess the effect of instruments on dentin), assuming the effect size of 7.6 for the microcracks reported after root canal instrumentation in previous studies,11, 12 α = 0.05, β = 0.95, and a study power of 90%, using the PASS 15 software (NCSS, Kaysville, USA).

Sample selection

A total of 250 mandibular first and second molars were evaluated for inclusion in this study. All roots were inspected under a stereomicroscope at ×12 magnification. Teeth with immature apices and external dentinal defects were excluded. Next, the teeth underwent high-resolution cone-beam computed tomography (CBCT) with the use of a NewTom® VGi scanner (NewTom, Imola, Italy) with the exposure parameters of 110 kVp, 9.5 mA, a voxel size of 0.1 mm, and a field of view (FoV) of 6 × 6 cm. The NNT® viewer, v. 8.0 (NewTom) was used to assess different sections in order to classify the root canal system and root canal curvature. Root canal curvature was measured according to Schneider’s method.13 In this method, the degree of root canal curvature is determined by measuring the angle formed between the longitudinal axis of the root canal and a line drawn from the initiation point of curvature to the apical foramen. Molar teeth with a Vertucci type IV mesial root, a mesiobuccal root canal curvature of 20–40° on sagittal and/or coronal sections, no calcification, no internal or external root resorption, and no history of previous endodontic treatment were enrolled. The mesiobuccal canals of the mesial roots of 30 mandibular molars that met the eligibility criteria were selected.14 All teeth were stored in a 0.1% thymol solution during the course of the study.

The crowns and distal roots of all teeth were cut with a low-speed saw (IsoMet 4000; Buehler Ltd., Lake Bluff, USA) under water cooling, and all remaining roots were standardized to have a length of 12 ±1 mm from the apex.

To simulate the periodontal ligament, the root surfaces were wrapped with 1 layer of aluminum foil and mounted in tubes filled with an acrylic resin (Kulzer, Hanau, Germany). After setting, the aluminum foil wrap was removed from the root surfaces and the created space was filled with a silicon impression material (GC Corporation, Tokyo, Japan). The roots were immediately placed back in the block.12

Each root was randomly assigned to one of the 3 groups of 2S, EFX1 or NN (n = 10) for root canal instrumentation. All roots underwent micro-CT (LOTUS-inVivo; Behin Negareh Co., Tehran, Iran) prior to instrumentation15 and 400–500 micro-CT transverse cross-sectional images were obtained for each root. The exposure parameters included an isotropic resolution of 31 µm, a voltage of 99 kV, an amperage of 88 µA, and a frame exposure time of 2 s, with an aluminum filter with a thickness of 0.5 mm, a rotation of 360° and a rotation step of 0.3°.

Root canal preparation

The working length was determined by introducing a size 10 K-file (Mani Inc., Utsunomiya, Japan) into the root canal until its tip was visible at the apical foramen; 1 mm was subtracted from this length to determine the working length. Next, a glide path was created using a size 15 K-file (Mani Inc.). Instrumentation was performed by the same operator in all groups.

Each file was used for the instrumentation of 2 canals, using an endomotor (Silver; VDW, Munich, Germany) with the speed and torque set as recommended by the manufacturer.

In the 2S group, TS1 (25, 04) and TS2 (25, 06) files were sequentially introduced into the canal with a torque of 1.5 Ncm and a speed of 300 rpm with a pecking motion, and proceeded with an up-and-down motion until the file reached the working length.

In the EFX1 group, the EdgeFile X1 instrument (25, 06) was used with a reciprocating motion at the WaveOne setting until it reached the working length.

In the NN group, the NeoNiTi A1 instrument (25, 06) with a torque of 1.5 Ncm and a speed of 300 rpm was used with a circumferential brushing motion until reaching the working length.

In all systems, after 3 pecking motions, the file was removed from the canal and its flutes were cleaned with gauze. Next, the root canal was rinsed with 2 mL of 2.5% sodium hypochlorite.2 After root canal instrumentation, the root canals underwent micro-CT again with the same exposure parameters as those used for pre-instrumentation scanning.

Assessment of dentinal microcracks

The reconstructed micro-CT images were transferred to a data viewer (RadiAnt DICOM Viewer 2020.2). The pre- and post-instrumentation micro-CT cross-sectional images (N = 29,280) were simultaneously evaluated. Two blinded observers (endodontists) with 4 years of clinical experience evaluated all sections twice at a 2-week interval (to assess intra-observer agreement) and recorded the microcracks. A microcrack was defined as any incomplete crack line initiating from the canal wall and extending into the dentin structure, but not reaching the external surface of the root. A complete crack was defined as a crack line initiating from the root canal wall and extending to the external surface of the root. A craze line was defined as any other line that did not reach the root surface or extended from the external surface of the root into the dentin, but did not reach the root canal wall.11 In case of any disagreement between the observers, the images were inspected again until consensus was reached.

Statistical analysis

Cohen’s kappa coefficient (κ) was calculated to assess inter- and intra-observer reliability. The number of dentinal cracks before and after instrumentation in each group was compared by means of McNemar’s test using the IBM SPSS Statistics for Windows software , v. 25.0 (IBM Corp., Armonk, USA), at a level of significance of 0.05.

Results

The kappa coefficient was calculated to be 0.86, which indicated very good inter-observer agreement (reliabi­lity). The kappa coefficient for intra-observer agreement (reliability) was found to be 1 for both observers, indicating complete agreement.

Out of the 29,280 cross-sectional images evaluated in this study, 11.5% showed dentinal microcracks (n = 3,362). On the post-instrumentation images, the frequency percentage of microcracks was 12.0% (n = 585) in the 2S group, 8.8% (n = 402) in the EFX1 group and 13.3% (n = 694) in the NN group. All the microcracks detected on the post-instrumentation images were also present on the pre-instrumentation images and no new microcracks were formed after root canal instrumentation with the aforementioned systems (p = 1.00) (Table 1). Figure 1, Figure 2, Figure 3, Figure 4 show the cross-sectional images of the roots before and after instrumentation. Table 2 pre­sents the total frequency percentage of microcracks on the cross-sectional images of the roots in all groups. Figure 5 shows the sequence of cross-sectional images of the same mesial root, demonstrating the development of microcracks.

Discussion

Mandibular molars have shown a mean root canal curvature >20° in morphological studies.16, 17 However, many studies on dentinal microcracks in mandibular molars have evaluated teeth with a mesial root curvature of 10–20°.9, 10, 18 Thus, mandibular molars with a mesial root curvature >20° were used in this study.

This study evaluated the effects of the sequential rotary (2S), reciprocating (EFX1) and single-file rotational (NN) systems on microcrack formation in the curved root canals of mandibular molars. Although dentinal micro­cracks were observed in all 3 groups after root canal instrumentation, these microcracks were present on the micro-CT images obtained before root canal instrumentation as well. Thus, no new microcracks were formed after root canal instrumentation with the 2S, EFX1 and NN systems. This finding is in agreement with the results of the majority of previous studies that used micro-CT for the assessment of microcrack formation after root canal instrumentation.9, 10, 12, 19, 20, 21, 22, 23, 24, 25 A study conducted in 2014 used micro-CT for the first time and showed no cause-and-effect relationship between dentinal microcrack formation and root canal instrumentation.10 After that, many micro-CT studies confirmed this finding. In their study on human cadavers, De-Deus et al. evaluated 19,060 cross-sectional micro-CT images of maxillary first and second premolars and observed that root canal pre­paration with rotary and Reciproc files did not cause new dentinal microcracks.21 In another study, De-Deus et al. evaluated the effects of the ProTaper Next and Twisted File Adaptive systems on dentinal microcrack formation with the use of micro-CT.9 They evaluated 25,820 cross-sectional images of the mesial roots of mandibular molars before and after instrumentation and found no new microcracks after instrumentation.9 Another recent study compared root canal preparation with the ProTaper Next, ProTaper Gold and WaveOne Gold systems with regard to the formation of dentinal microcracks in mandibular molars with a root curvature >20°.12 All the microcracks detected after instrumentation on micro-CT images were present on the pre-instrumentation images as well, and no new microcracks were observed.12 An in vivo study on intact premolars scheduled for extraction as part of orthodontic treatment evaluated with micro-CT the effects of manual instrumentation and rotary instrumentation with ProTaper files.22 They found no new dentinal microcracks after root canal instrumentation.22

On the contrary, some micro-CT studies have reported the formation of new microcracks after root canal preparation.2, 3, 18, 26 Ceyhanli et al. showed an increase in the number of dentinal microcracks after the preparation of the mesial roots of mandibular molars with all 3 systems of ProTaper Universal, RaCe and SafeSider, using micro-CT.2 They reported the maximum number of microcracks in the ProTaper Universal group.2 Also, Li et al. demonstrated an increase in the length of microcracks present in the mesial roots of mandibular first molars with a curvature of 10–20° after root canal instrumentation.18 They used single-file systems and showed that the change in microcrack length in the OneShape group was greater than that in the WaveOne and Reciproc systems.18 Bayram et al. determined that root canal instrumentation with ProTaper Universal significantly increased the formation of new dentinal microcracks.3 Jamleh et al. reported that both the WaveOne reciprocating and ProTaper Universal rotary systems resulted in the formation of new microcracks.26

Controversy in the results may be related to differences in the methodologies and quality of tools used. For instance, in the study by Ceyhanli et al.,2 the reason for the increase in the number of microcracks might be the fact that only 10 root sections were evaluated (<1.5% of all the obtained images); this may have led to false positive results due to the presence of noise or artifacts.27 Jamleh et al. required dry and dehydrated surfaces to measure root surface strain as well as for the application of the staining technique,26 which increased the risk of formation of defects and dentinal microcracks.28 Another in­fluential factor in microcrack formation is the working length of the root canal. A recently published systematic review indicated that in all root canal preparation techniques, a proper working length (1 mm short of the apex) is required to prevent microcrack formation.23 This was not the case in the studies by Li et al.18 and Bayram et al.,3 and might be the possible reason for the development of dentinal microcracks in their studies.

Studies that used the sectioning technique for the assessment of dentinal microcracks have reported controversial results. The majority of such studies have reported the formation of dentinal microcracks following the use of different instrumentation techniques.4, 23 However, there is no consensus among such studies, and the prevalence of microcrack formation following the use of different instrumentation techniques ranges from 0% to 80%.4 According to Versiani et al., such a wide range of variation in the prevalence of microcracks may be attributed to the use of different systems and root canal preparation protocols, methods of observation of dentinal defects (with or without a dye), root canal anatomy, the irrigation protocol, and the type of classification used for defects.4 In sectioning studies, 3–4 sections of the root are often evaluated, made at 1, 3, 7, and 9 mm, or 2, 4, 6, and 8 mm from the apex. This is among the most important drawbacks of the sectioning technique, as the assessment of such a limited number of slices increases the risk of missing a high number of defects along the root canal wall. However, with micro-CT, hundreds of slices of each root can be evaluated. Moreover, micro-CT has a much higher resolution than stereomicroscopy.5 Another important drawback is the destructive nature of the sectioning method. Stringheta et al. compared the sectioning and micro-CT methods for the detection of dentinal microcracks after root canal instrumentation.29 They inspected the micro-CT scans before sectioning and noticed that the sectioning method was destructive, and resulted in the formation of new dentinal defects.29 For this reason, the majority of studies that used the sectioning technique have reported new dentinal crack formation after the instrumentation process.30 The advantages of micro-CT include its non-destructive nature, its ability to exactly locate dentinal cracks in the root and its three-dimensional (3D) assessment. This allows the evaluation of hundreds of cross-sectional images of the entire root length and the detection of microcracks already present in the root canal walls prior to instrumentation or at different stages of endodontic treatment.9, 24

The kinematics of the instrument motion and its effect on the formation of dentinal microcracks is another topic of interest that has been addressed in previous studies. A meta-analysis that mainly focused on sectioning stu­dies reported that a reciprocating motion produced a significantly smaller number of dentinal cracks as compared to a rotational motion.30 However, 2 recently published systematic reviews on micro-CT studies found no corre­lation between instrumentation kinematics and the formation of dentinal microcracks,23, 24 which confirms the findings of the present study regarding no correlation between the type of instrument motion and dentinal microcrack formation.

Conclusions

According to the results of this in vitro study, the instrumentation of curved root canals with the 2S, EFX1 and NN systems does not result in the formation of new dentinal microcracks.

Tables


Table 1. Dentinal microcracks on the cross-sectional images of the roots before and after instrumentation

Scanning
time

Dentinal microcracks

2S

EFX1

NN

presence of microcracks

absence of microcracks

total

presence of microcracks

absence of microcracks

total

presence of microcracks

absence of microcracks

total

Before instrumentation

585
(12.0)

4,295
(88.0)

4,880
(100)

402
(8.8)

4,149
(91.2)

4,551
(100)

694
(13.3)

4,515
(86.7)

5,209
(100)

After instrumentation

585
(12.0)

4,295
(88.0)

4,880
(100)

402
(8.8)

4,149
(91.2)

4,551
(100)

694
(13.3)

4,515
(86.7)

5,209
(100)

Total

1,170
(12.0)

8,590
(88.0)

9,760
(100)

804
(8.8)

8,298
(91.2)

9,102
(100)

1,388
(13.3)

9,030
(86.7)

10,418
(100)

Data presented as number (percentage) (n (%)). 2S – 2Shape; EFX1 – EdgeFile X1; NN – NeoNiTi.
Table 2. Total frequency of microcracks on the cross-sectional images of the roots in all 3 study groups

Scanning time

Presence of microcracks

Absence of microcracks

Total

Before instrumentation

1,681
(11.5)

12,959
(88.5)

14,640
(100)

After instrumentation

1,681
(11.5)

12,959
(88.5)

14,640
(100)

Total

3,362
(11.5)

25,918
(88.5)

29,280
(100)

Data presented as n (%).

Figures


Fig. 1. Representative cross-sectional images of the mesial roots of mandibular molars showing the presence of cracks (arrows) before and after the preparation of the mesiobuccal canals with the 2Shape (2S), EdgeFile X1 (EFX1) and NeoNiTi (NN) systems
Fig. 2. Representative cross-sectional images of the roots, showing the absence of cracks before and after instrumentation
Fig. 3. Representative cross-sectional images of the mesial roots of mandibular molars, showing the presence of cracks (arrows) before and after the preparation of the mesiobuccal canals

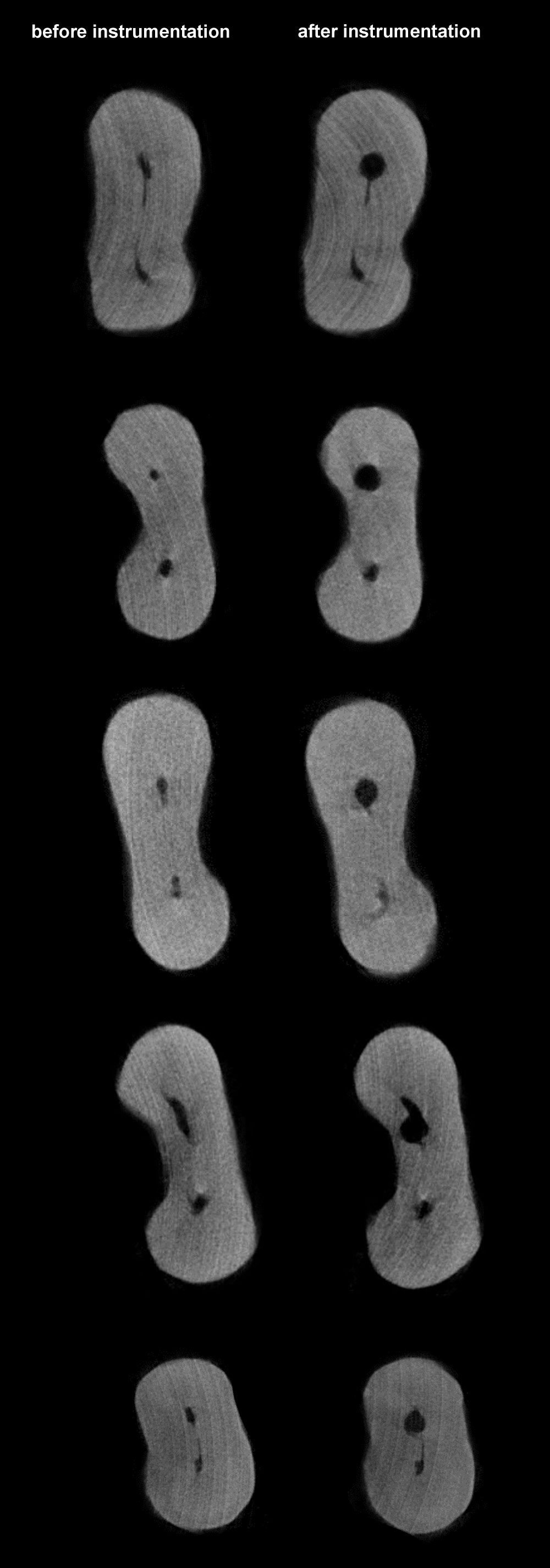

Fig. 4. Representative cross-sectional images of the roots, showing the absence of cracks before and after instrumentation
Fig. 5. Sequence of cross-sectional images of the same mesial root of a mandibular molar, demonstrating that the development of microcracks (yellow arrows) can be evaluated throughout the longitudinal axis of the root, confirming the identification of true dentinal defects and artifacts
