Alhroob KH, Alsabbagh MM, Alsabbagh AY. Effect of the use of a surgical guide on heat generation during implant placement: A comparative in vitro study. Dent Med Probl. 2021;58(1):55–59. doi:10.17219/dmp/127605

Effect of the use of a surgical guide on heat generation during implant placement: A comparative in vitro study

Khaldoun Hossein Alhroob1,A,B,C,D,F, Mohammed Monzer Alsabbagh1,A,B,E,F, Aghiad Yassin Alsabbagh2,A,C,E,F

1 Department of Periodontology, Faculty of Dentistry, Damascus University, Syria

2 Salisbury District Hospital, UK

Abstract

Background. Heat generation is considered a decisive factor in the occurrence of bone necrosis during implant placement, which can happen when the temperature exceeds a threshold of 47°C for 1 min. The use of a surgical guide to aid implant placement has gained popularity in the last few years. Whether it increases the risk of bone necrosis is still debatable.

Objectives. The aim of the present study was to compare heat generation during implant placement with and without the use of a surgical guide.

Material and methods. The study sample consisted of 80 measurement sites placed near 40 dental implant sockets, which were prepared on 10 bone-like dental models. These models were divided into 5 models for the conventional method group and 5 models for the surgical guide group. Each model had 4 implant sockets prepared, and then two 1-millimeter-wide holes were drilled <1 mm away from the socket on the opposite sides of the implant socket to be used as temperature measurement sites. The diameter of the drill was standardized to 2.2 mm, and 4 different drill lengths were used (6, 8, 10, and 12 mm). The data was analyzed using the SPSS for Windows software, v. 13.0. A p-value of <0.05 was deemed statistically significant.

Results. Significant differences were found in heat generation between the conventional group (41.07°C) and the surgical guide group (42.97°C) (p < 0.05). Significant changes in temperature were recorded after drilling, regardless of the method used (p < 0.05). Moreover, the length of the drill was associated with temperature changes, with longer drills generating more heat (p < 0.05).

Conclusions. Within the limitations of this study, the use of a surgical guide resulted in higher temperatures as compared to the conventional method of implant placement. However, the highest recorded temperature was far below the threshold for bone necrosis.

Key words: dental implants, bone, temperature

Introduction

Dental implants have become an essential part of routine dental treatment to replace lost teeth. The conventional dental implant placement procedure involves making a surgical incision into the gingiva on the crest of the alveolus and elevating a mucoperiosteal flap to access the bone underneath it, then placing the dental implants, replacing the flap, and finally suturing the wound.1, 2

Recently, flapless dental implant placement has gained popularity as an alternative to the conventional dental implant placement procedure with many advantages, such as being less invasive, possibly causing less postsurgical discomfort, shortening the duration of the surgical procedure, and minimizing changes that occur in the alveolar crest. This might be attributed to a relatively small surgical incision and not raising a mucoperiosteal flap.3, 4, 5

Moreover, various computer-guided systems are now available to help in making a precise three-dimensional (3D) diagnosis, and the programs included in these systems aid in accurately transferring the locations of virtual implants from the computer to appropriate sites in the patient’s mouth. The necessity for this accuracy has become more prominent, especially after the adoption of computer-guided systems in flapless implantation procedures.6

The effectiveness of surgical guides remains a topic for scientific research, especially given what some studies suggest regarding the effectiveness of using surgical guides with irrigation cooling. This is a crucial point, as exposing bone tissue to a temperature of 47°C for a full minute is considered a threshold for causing irreversible osteonecrosis, which necessitates taking measures to avoid subjecting the bone to mechanical or thermal damage.7, 8

Therefore, the aim of our study was to compare changes in bone temperature while preparing the implant site with the use of a surgical guide and by means of the conventional method of implantation. Moreover, we assessed the effects of using various drill lengths on heat generation.

Material and methods

A comparative laboratory study was conducted to assess an increase in temperature when using either the conventional method or a surgical guide for dental implant placement. The study was carried out between December 2019 and March 2020.

The study sample consisted of 80 measurement sites placed near 40 dental implant sockets, which were prepared on 10 artificial-bone blocks similar to human D2 bone (solid rigid polyurethane foam; Alexandria Industries, Taipei, Taiwan). These models were divided into 5 models for the conventional method group and 5 mo­dels for the surgical guide group (Figure 1). Each model had 4 implant sockets prepared, and then two 1-millimeter-wide holes were drilled 1 mm away from the socket on the opposite sides
of the implant socket to be used as tempera­ture measurement sites (Figure 2). The holes were drilled using Peeso reamers (Rogin Dental, Shenzhen, China) on a contra-angle handpiece (NSK, Tokyo, Japan) (Figure 3).

Each bone block was placed in an aqueous medium of a temperature similar to body temperature (37°C),9 then a thermometer (Thermocouple Type K device; Danoplus, Hong Kong, China) was placed inside the measurement sites and the temperature was recorded (Figure 4). The implant motor (X-Cube implant motor system; Dentis, Daegu, South Korea) was set to 1,200 rpm, 30 N and 85% irrigation for the preparation of all implant sites.

Drilling was started for the implant socket with a 6-milli­meter-long bur of a diameter of 2.2 mm (Dentis) and the temperature was recorded immediately after drilling in the temperature measurement sites. The temperature was also recorded before and immediately after drilling with the use of 8-, 10- and 12-millimeter-long drills. The same procedure was applied in the surgical guide group, following the insertion of the customized surgical guide.

Having collected the data, it was entered and analyzed using the SPSS for Windows software, v. 13.0 (SPSS, Inc., Chicago, USA). The statistical analysis was conducted at the significance level set at 0.05 (p < 0.05). The analysis of variance (ANOVA) was used to determine the existence of statistically significant differences when comparing more than 2 independent variables, and the Bonferroni correction was used to perform multiple comparisons. The mean temperature of all measurement sites was used to study the different variables, except for the temperature differences between the 2 measurement sites, where the comparison was made between the means of the opposite sides.

Results

The study sample consisted of 80 measurement sites for 40 dental implant locations (orthopedic pits), which were prepared on 10 artificial-bone blocks.

Table 1 shows the sample temperature before and immediately after drilling with regard to the following variables: implant placement method; drill length; and measurement site.

The mean temperature in the surgical guide group was 38.14°C before drilling and became 42.49°C after drilling whereas in the conventional method group, the mean temperature was 37.64°C before drilling and 41.07°C after drilling.

It was also noted that the temperature increased with an increasing drilling depth, with the average temperature after drilling of 39.19°C following the use of a 6-milli­meter drill as compared to 43.91°C following the use of a 12-milli­meter drill.

No significant differences in temperature were observed between the opposite sides of the implant socket.

The ANOVA test was performed to study the effects of the pre-drilling temperature, the implantation method, the length of the drill, and the measurement site on the temperature recorded after drilling (Table 2).

Table 2 highlights that no statistically significant difference was found between the temperature measurement sites on both sides of the implant socket (p = 0.113).

As for the remaining independent variables, significant differences in the temperature after drilling were found between all of them.

Table 3 shows the mean (M) and standard error (SE) values for the temperature recorded following the use of the 2 surgical implant placement methods and different length drills, on both sides of the implant socket.

The multiple comparison test was conducted using the Bonferroni method on the mean temperature values after drilling to compare various drill lengths, as shown in Table 4.

Significant differences in heat generation were found between any 2 drill lengths used.

Discussion

The amount of heat generated by and transmitted from burs to the bone during drilling while preparing the implant socket depends on several factors, including the speed of rotation of the drill, the number of drills used, the design and shape of the drill, the depth of drilling, the cutting edge of the drill, and the use of internal or external irrigation. To sum up, what is important with regard to heat generation are the cooling mechanisms and the forces applied during the drilling process.9 Therefore, if a surgical guide is to be used, it should have cooling channels to reduce an increase in bone temperature. This is particularly important when drilling is performed in harder bone, such as D1 or D2, since the use of a surgical guide may reduce the effectiveness of irrigation.10

The results of this study showed that there was a statistically significant effect of each of the implant placement method and drill length as well as of the temperature before drilling on the temperature values after drilling. The fact that a surgical guide hampers the access of the irrigation fluid to the drilling site may explain a significant increase in temperature in case a surgical guide is used for dental implant placement.7 The rise in temperature which occurs when the first 2.2-millimeter bur is used is due to the need to remove a large amount of bone, which causes friction to the bone during drilling.11 The clinical tempera­ture values recorded after the bone drilling process are usually lower and safer than those recorded in laboratory studies; this might be due to the fact that the blood circulation within bone tissue dissipates a slight amount of the heat generated during the drilling process.12

A slight difference in the mean pre-drilling temperature of 0.5°C was noted. All bone blocks were placed in an aqueous medium of a temperature of 37°C in an attempt to standardize the pre-drilling temperature. However, slight differences can be expected, as the temperature of the medium can be 37 ±0.5°C.

The highest temperature recorded in our study did not reach the threshold for osteonecrosis.

These results align with the results obtained by Misir et al., who conducted their study on bone-like dental models using the Thermocouple Type K device with a drilling speed of 1,500 rpm.13 The researchers used 2 different systems of drilling burs: in the 1st group, an external irrigation system was used, and in the 2nd group, both internal and external irrigation systems were applied. The authors concluded that drilling the implant socket with the use of a surgical guide resulted in a greater increase in temperature in comparison with the conventional method.13

Moreover, the results of the present study are in line with a study by Strbac et al., where it was found that the highest increase in bone temperature was obtained after reaching the deepest point in the hole, and that heat gene­ration was a result of friction between the bone and the drill surface.14

Our results are also consistent with those of Kim et al., who conducted their study on models of artificial bone using the Thermocouple Type K device, and made measurements at depths of 1, 5 and 10 mm.15 The authors showed that the highest internal temperature of the bone was at a depth of 10 mm (44 ±1.09°C).15

One of the limitations of this study was that it was done in a laboratory setting, where the recorded temperature may not be identical to that achieved in clinical conditions. Such studies are hard to perform in vivo; there would be some ethical concerns with regard to drilling 2 temperature holes in the patient’s mouth, and also there would be anatomical difficulties with placing the probes intraorally. With that said, the highest temperature achieved in the current study was still lower that the threshold for bone necrosis. Therefore, it is the authors’ belief that when using a good irrigation system in clinical conditions, lower and safe temperatures are expected due to the added bene­fit of the blood circulation. Another limitation is measuring the temperature in the temperature holes rather than the implant socket itself, although the closeness of the hole to the implant socket may reduce the amount of temperature discrepancies that might occur.

Conclusions

Within the limitations of this study, we can conclude that using a surgical guide results in a higher temperature as compared to the conventional method of implant placement, as a surgical guide can impede irrigation. However, the observed increase was not statistically significant and the highest recorded temperature was below the threshold for bone necrosis.

Tables


Table 1. Descriptive statistics of the variables in terms of temperature [°C] before and after drilling

Variable

Status

Counts

M

SD

Min

Max

Implantation method

surgical guide

before drilling

40

38.14

1.14

35.3

39.8

conventional

40

37.64

0.88

34.9

38.9

surgical guide

after drilling

40

42.49

1.87

39.5

45.4

conventional

40

41.07

1.98

37.1

43.8

Drill length

6-millimeter

before drilling

20

36.47

0.89

34.9

38.5

8-millimeter

20

38.09

0.43

37.2

38.9

10-millimeter

20

38.39

0.48

37.4

39.3

12-millimeter

20

38.61

0.60

37.6

39.8

6-millimeter

after drilling

20

39.19

1.29

37.1

41.3

8-millimeter

20

41.22

0.60

40.3

42.2

10-millimeter

20

42.81

0.83

41.3

44.0

12-millimeter

20

43.91

1.14

41.5

45.4

Measurement site

site A

before drilling

40

37.84

1.03

35.3

39.6

site B

40

37.94

1.07

34.9

39.8

site A

after drilling

40

41.65

2.12

37.1

45.4

site B

40

41.91

1.98

37.2

45.3

M – mean; SD – standard deviation; min – minimum; max – maximum.
Table 2. Association between the variables and the recorded temperature (ANOVA)

Variable

F-value

p-value

η2-value

Severity of effect

Implantation method

66.25

0.001*

0.513

mild

Drill length

64.63

0.001*

0.755

strong

Measurement site

2.59

0.113

Pre-drilling temperature

10.09

0.002*

0.138

weak

* statistically significant.
Table 3. Estimated mean (M) and standard error (SE) temperature values [°C] for each variable

Variable

M

SE

Implantation method

surgical guide

42.38

0.10

conventional

41.18

0.10

Drill length

6-millimeter

39.76

0.22

8-millimeter

41.13

0.14

10-millimeter

42.60

0.15

12-millimeter

43.62

0.16

Measurement site

buccal

41.67

0.09

lingual

41.89

0.09

Table 4. Multiple comparison between different drill lengths using the Bonferroni correction

Hole depth
[mm]

Difference between the groups

SE

p-value

6

8

−1.37

0.28

0.001*

10

−2.84

0.31

0.001*

12

−3.86

0.33

0.001*

8

10

−1.47

0.19

0.001*

12

−2.49

0.20

0.001*

10

12

−1.02

1.19

0.001*

* statistically significant.

Figures


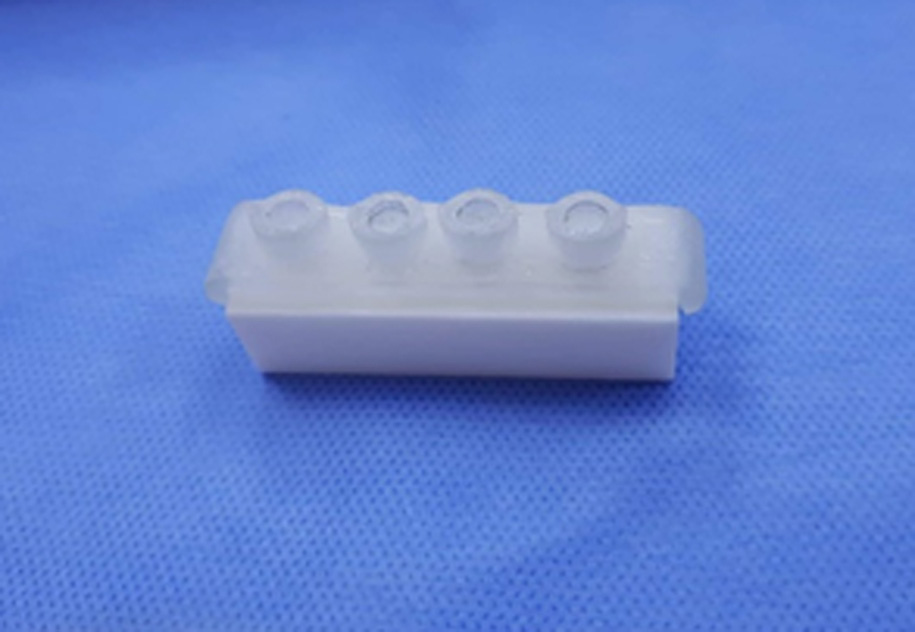

Fig. 1. Bone model with the surgical guide mounted

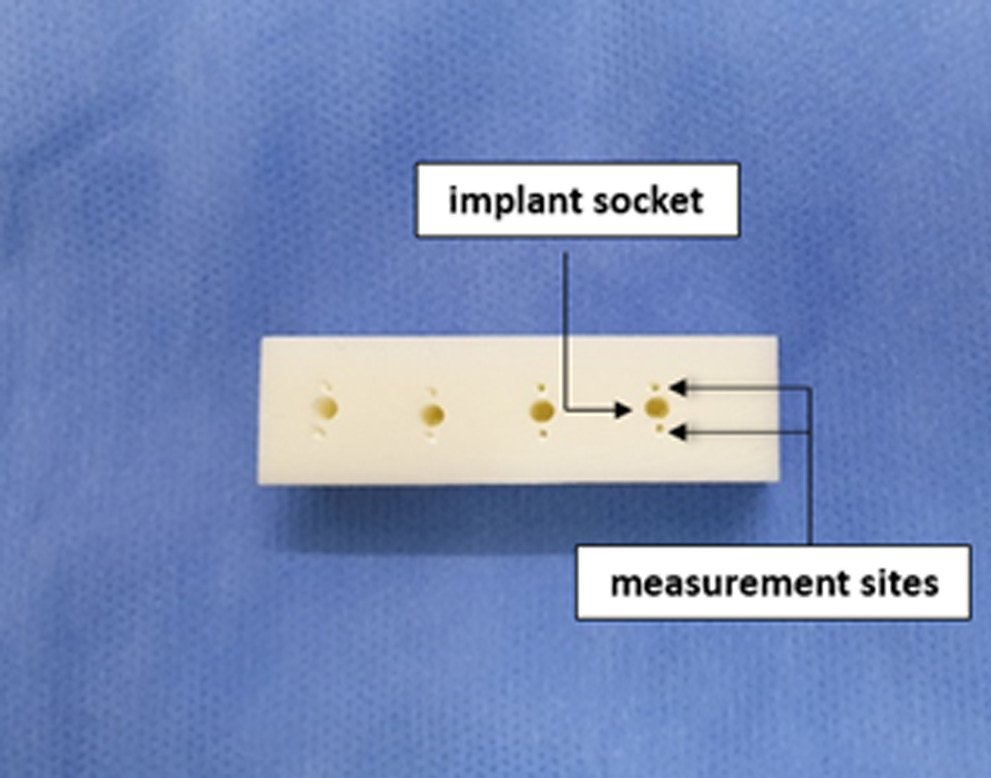

Fig. 2. Bone model showing the implant sockets and the temperature measurement sites

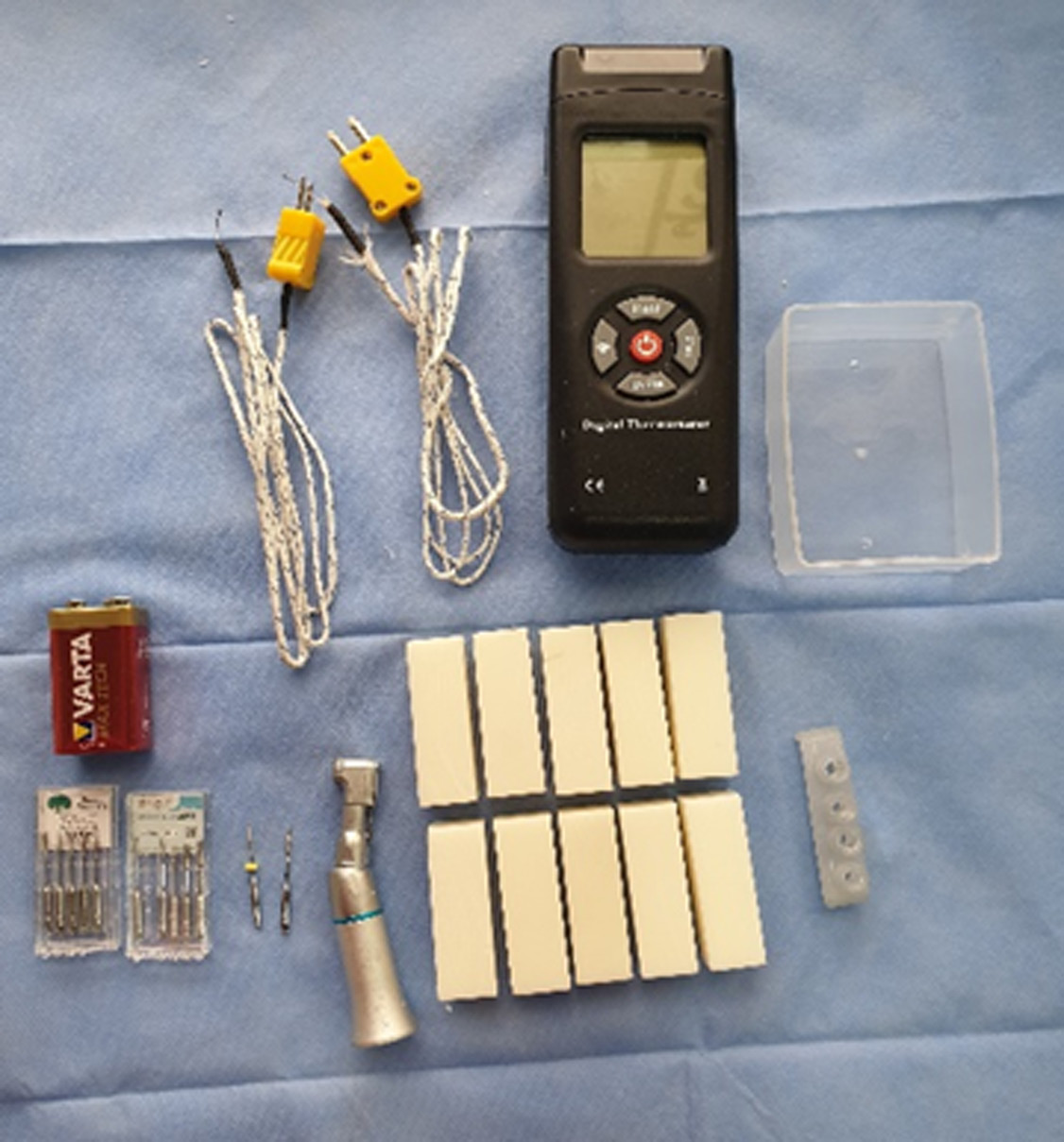

Fig. 3. Laboratory materials (from left to right): a battery, Peeso reamers, a contra-angle handpiece, cords, a thermometer, bone blocks, water, and a surgical guide

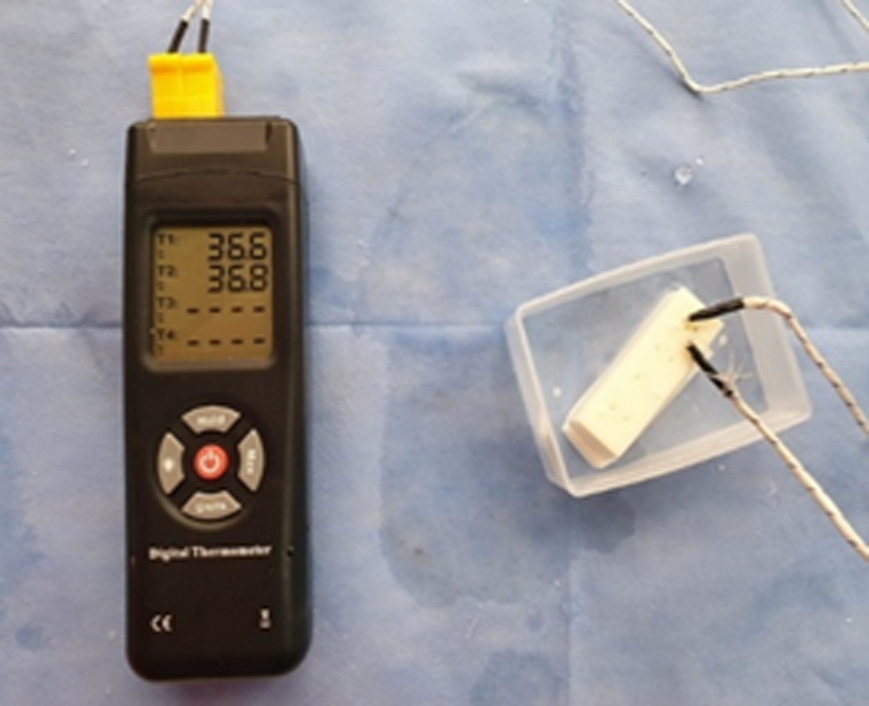

Fig. 4. Temperature recorded in 2 measurement sites
